Plywood Manufacturing Machinery

Plywood refers to that logs are spine into veneer by peeling machine , and then glued according to the veneer fiber direction which is arranged perpendicularly, and finally pressed into a wood-based panel. Plywood is the ideal product widely used in all kinds of furniture, office supplies, combination speaker, packaging exhibition and other industries. Main sections of plywood production line include peeling section, veneer drying section, gluing section, repress section, hot press section, saw edge section, sanding section...etc. The thickness range of plywood is generally the 8-18mm, board width is generally 915-1220mm. We can design and manufacture any size according to users' requirements.

Plywood Production Technology:

1) Log cutting:
Usually import log length is more than 6 meters. Cutting according to the technology required length and quality. The cutting length should be product length add remains. For example, product is 1220mm*2440mm, cutting length usually be 2600mm or 1300mm. log length, camber and demerit affect plywood output directly. Remains are small wood pieces, truncations, sawdust, tec. Log cutting wastage ratio is 3%-10%.

2)Veneer peeling:
Peeling is the most popular plywood producing process. Back veneer thickness is about 0.6mm, core veneer and centre veneer thickness is about 1.8mm.

3) Drying:
Veneer is moist. it should be dried according to the technology requirement. After drying, it will shrink. Dimension will become smaller. Veneer length, width, thicknesswill shrink. Shrink wastage is related to wood material, moisture containing, veneer thickness. Shrink wastage is 4%-10%.

4) Veneer gluing and handling:
Handling include cutting, putting veneer together and mending. Cut zonal veneer into specification veneer or proper size which can be put together. Narrow zonal veneer can be put together into one veneer. Veneer with demerit can be mended to be qualified. Wastage in this part related to log material, peeled veneer quality, dried quality, and worker operation skill. Wastage ratio is 4%-16%. Import veneer processing plywood wastage ratio is 2%-11%.

5) Cold and Hot press:
Veneer be glued and stacked, then glue together under set temperature and pressure by hot press. As veneer temperature and moisture containing changes, veneer will shrink. Shrink wastage is related to temperature, pressure, hot press time, wood material, moisture containing,wastage ratio is 3%-8%

6) Edge trimming:
Trimming the edge of the plywood flank from hot press to qualified plywood board. Remains related to process remains and product dimension. Production is bigger, wastage is smaller.Wastage ratio is 6%-9%

7) Sanding:
Sanding plywood surface to make it good. Wastage is powder. Veneer quality is good, sanding is less. Wastage ratio is 2%-6%
Other machines
We can also provide other machines, just like veneer jointer machine, knife grinder and so on.

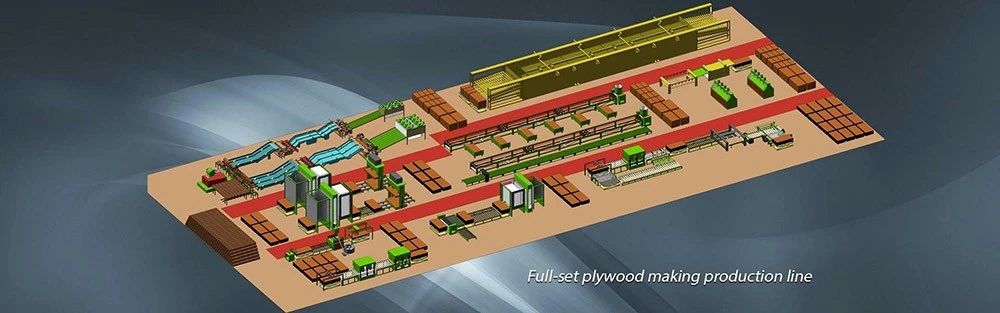

Complete plywood production line need the following 5 parts
Part 1 : Veneer peeling line - wood cutting machine +veneer debarker +veneer peeling machine +veneer sticker
Part 2; Veneer drying - veneer drying machine
Part 3 , Veneer handle : veneer composer ,veneer gluing machine , veneer assemble machine
Part 4 , Panel press , cold press + hot press
Part 5 ,Panel handle : sanding machine + dd trimming saw machine

(1) Automatic wood log cutting line
1) Full automatic cutting line
2) LEAD PLC and touch screen control system
3) Frequency adjustable cutting length and feeding speed.
4) Two way hydraulic wood clamping and cutting system.
The first step of veneer making from wood logs. cutting logs into pieces with required length automatically.Wood log from 6m cut into 4ft and 8ft size log.

(2) Log Debarker Machine
1) Heavy duty type
2) Huali Motor and Hardened Reducer.
3) Chrome hard treatment roller.
4) Wood chipper is optional
Chipper debarking machine, remove the bark from the tree logs and make log core round, meanwhile chips the barks.

(3) Veneer Peeling Machine
1) 30-80m/min,120-150 high speed model.
2) LEAD PLC control system with driver.
3) Servo motor feeding and cutting.
4) Huali motor and hardened reducer.
5) Free switching of 2 different cutting width.

Spindle veneer peeling machine suit big wood diameter, when your log more than 800mm ,suggest using this machine,usually no-card peeler main peeling cutting face veneer of plywood(0.2-0.5mm)

(4) Core Veneer Dryer
1) Easy operation with high efficiency and big yield.
2) Adopting advanced world famous brand electric components.
3) Adopts Finland and Italy design.
4) Automatic feeding device is optional.
Veneer drying machine is important machine in plywood processing, when you peeling get fresh veneer, for long stock ,need remove water and moisture,so you need core veneer dryer or drying line.

(5) Core Veneer Composer
1) Siemens PLC Servo Motor
2) Adopts Electromagnetic Clutch with Synchronous Axis.
3) Heavy Duty Steel Platen Frame.
Core veneer jointing machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line.

(6) Glue Spreader
1) Taiwan Delta PLC Control System.
2) Pneumatic thickness adjusting system.
3) Wear-resistant natural rubber(NBR).
4) Chrome steel squeeze roller.
Plywood glue spreader machine is one of the main types of equipment of the plywood production, it is will be after modulation good adhesive evenly coated to the surface veneer of mechanical equipment.

(7) Cold Press
1) Schneider brand electrical parts.
2) Original Wuxi solid oil cylinder.
3) With automatic chain roller conveyor.
4) Taiwan hydraulic system,fast press,lower power,short closing time.
Hydraulic Plywood Cold Press Machine for pre-pressing plywood, then offer to hot press machine.

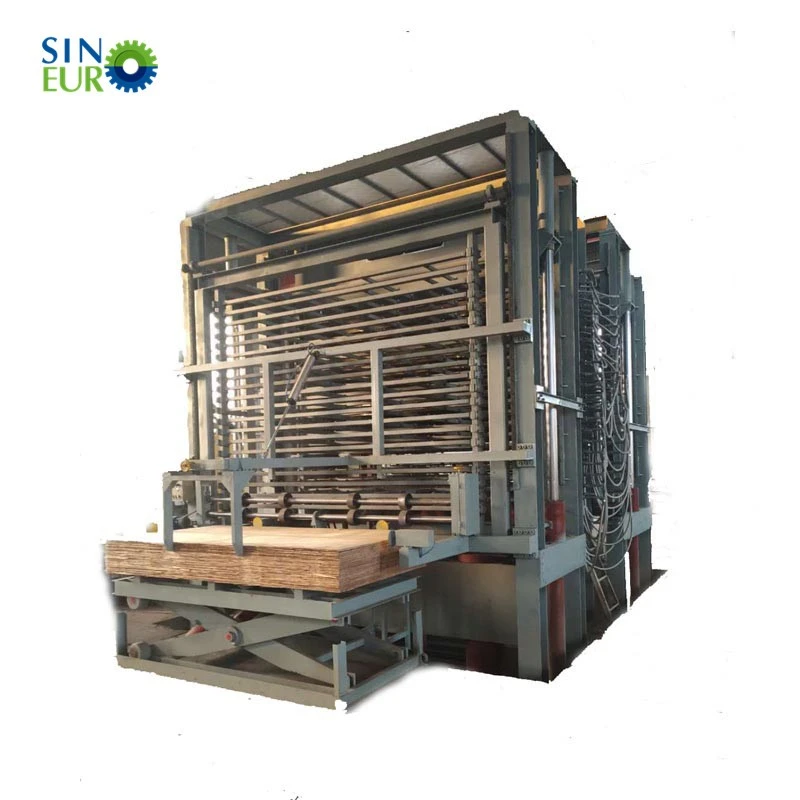

(8) Hydraulic Hot Press
1) 45mm thick Q235/Q345 steel.
2) Taiwan hydraulic system,fast press.
3) Silence/Dust-free hydraulic power pack.
4) 52mm double in and out hot platen.
5) Schneider brand electrical parts.
After cold pressing and repairing process, the treated basic plywood will be sent to basic plywood hot press. It will take 5-60 minutes depends on board thickness. After hot pressing, the workers will do the second time defects repairing. The board will be stored in semi product storage hours for cooling and storage.The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important to choose a high quality machine.

(9) Edge Trimming Saw
1) KND Servo and Siemens PLC control system optional.
2) One shift produce 4000-5000(18mm), high capacity and efficiency.
3) High precision anti-wearing guide rail, high precision cutting, edge is smooth.
4) KND Servo Control Sytem without any sensors and proximity switch, low failurerate
5) Any fault will be shown on touch screen, easy maintenance.
This machine used to cut the raw board to meet the size requierments of the finish board . During the production of veneer,in order to ensure that the size of the plywood meets the specified requirements,there is usually a margin size left .therefore ,the plywood after hot press is slightly larger than the specified size, Through the process of trimming ,the margin left will be removed.

(10) Sanding Machine
1) 0.5-1mm big thickness remove with perfect surface finishing.
2) Taiwan Sanding roller, wear-resisting, high precise.
3) Mitsubishi PLC and Schneider electrical parts.
4) NSK bearings and Siemens motors.
5) Alloy transport platform with high accuracy and wear-resistance
It is mainly used in panel calibrating and fine sanding for various types of boards,such as plywood,floorboard,medium and high density board,glued laminated timber,blackboard,calcium silicate board,fiber cement board,etc.

Pre-sale services:

1) Provide the free consultation of the equipment

2) Provide the standard device and the flow chart

3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

4) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

Sinoeuro Machinery is a manufacturer of wood-based panels with well-equipped testing facilities and strong technical force. We are committed to providing customers a complete solution for veneer peeling line, plywood production line, sawmill production line, L V L, block board, P B, O S B production line etc. Main equipment include: log debarked, veneer peeling lathe, dryer, glue spreader, per-press, hot press, core composer, dd saw, sanding machine, oil boiler, band saw, short cycle hot press machine, etc. All electronic parts are world famous brand, like Delta, Schneider, Siemens etc. Our machines have one year warranty. We have an experienced and innovative design team to keep technology update. The updated machines are more labor-saving, accurate and stable. We can customize machines according to customers' requests. Aim to satisfy every customer's demand. And our machines have C E certification. It is quality guaranteed. Our products have been exported to more than 30 countries and regions, such as Southeast Asia, South Asia, Middle East, Africa, Europe, South America, etc. Our engineers are available to abroad for machine installation and worker training. We can also provide with technology support on customers' project, like production process, plant construction. With high quality equipment and experienced technology support, Sinoeuro Machinery will give you a satisfactory plywood plant solution.
