Product Introduction
The short cycle hot press machine working principle is by supplying heat and pressure,pass through hot platens then come to surface of melamine paper,make the melamine glue melt and become solid with certain texture by the stainless steel plate,then leads a designed surface on the laminate surface.
The surface texture is depended by the stainless-steel chrome plate which is installed inside hot press machine. The press machine is pressing the board touching by chrome plate. That is how the surface design came out. The laminated boards have many artificial surface such as MIRROR, MATT, SUEDE, WOODGRAIN, SUEDE, EMBOSSED, 3D etc.
The short cycle laminating line is mainly used for laminating melamine decorative paper on core board such as MDF or Particle Board to make beautiful decorative furniture board.It works combine with stainless steel press plate,to work out different types of surface texture such as mirror,glossy,matt, suede,woodgrain,stone,3D etc.This kind of laminated panel is widely used for table,desk,cabinet,wall panel and flooring etc.
The auto lamination line has many flexible custom-made functions such as pusher,brusher,auto loading system,auto unloading sys- tem,trimmer,cooling line,jinspection,stacking etc.

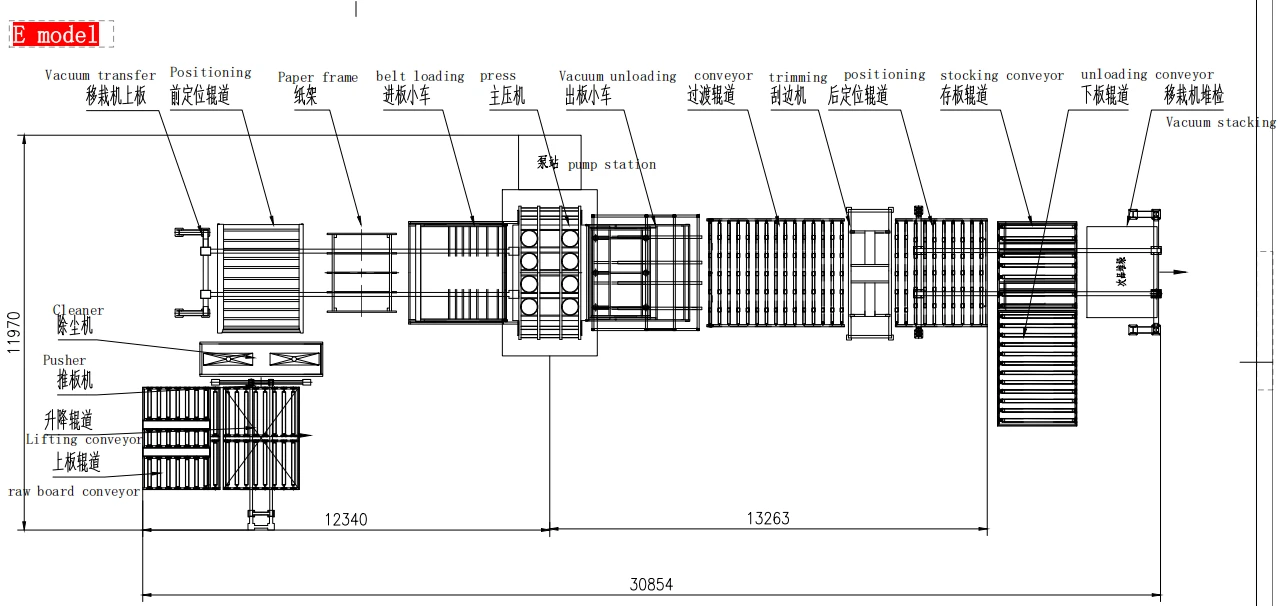

Automatic Line Options：
We can customize according to your requirements
Product Parameter(specification)
|
Finished board size |
1220×2440 mm |
|
Total working pressure |
16000 kn (1600T) |
|
Feeding direction |
Transverse |
|
Lamination method |
Double-sided lamination |
|
Daylight opening |
250mm |
|
Main cylinder (Diameter×stroke) |
Φ320*250mm, 8sets |
|
Lift cylinder (Diameter×stroke) |
Φ100*250mm, 2sets |
|
Temperature accuracy of heating plate |
±2℃ |
|
Oil pressure of hydraulic system |
≦25Mpa |
|
Closing time |
≦2s |
|
Temperature of heating plate |
≦250℃ |
|
Heating medium |
Heat transfer oil |
|
Voltage |
380V |
|
Thickness of main frame |
60mm |
|
Motor power of press |
27kw |
|
Size of hot pressed plate |
Up：1400*2600*150mm,Down：1400*2600*150mm |
|
The upper hot pressing plate adopts single-layer temperature control |
6 in and 6 out |
|
The lower hot pressing plate adopts single-layer temperature control |
6 in and 6 out |
|
Upper hot pressing plate lifting and guiding method |
synchronous connecting rod |
|
Control mode of electronic control system |
PLC+HMI |
|
Net weight |
Approx 40T |
|
Overall dimensions |
3900*1400*3900mm |
Our Services
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
