Product Introduction

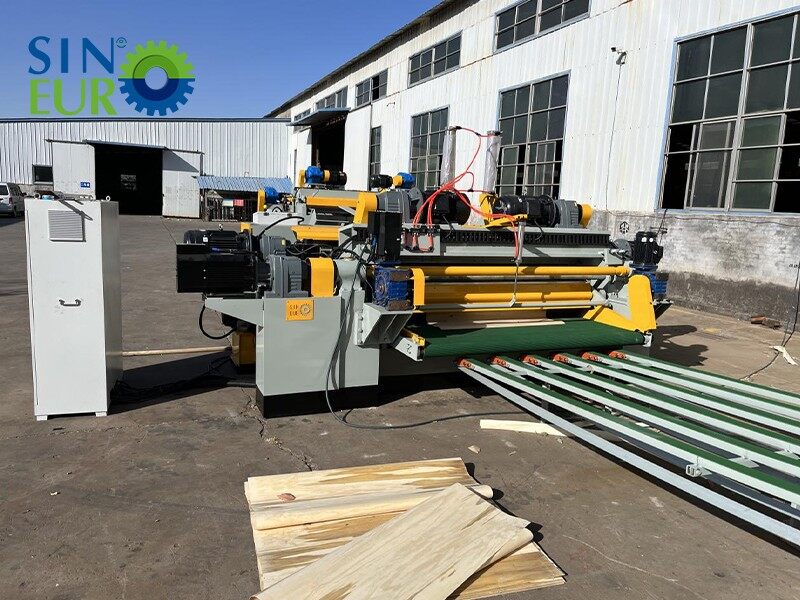

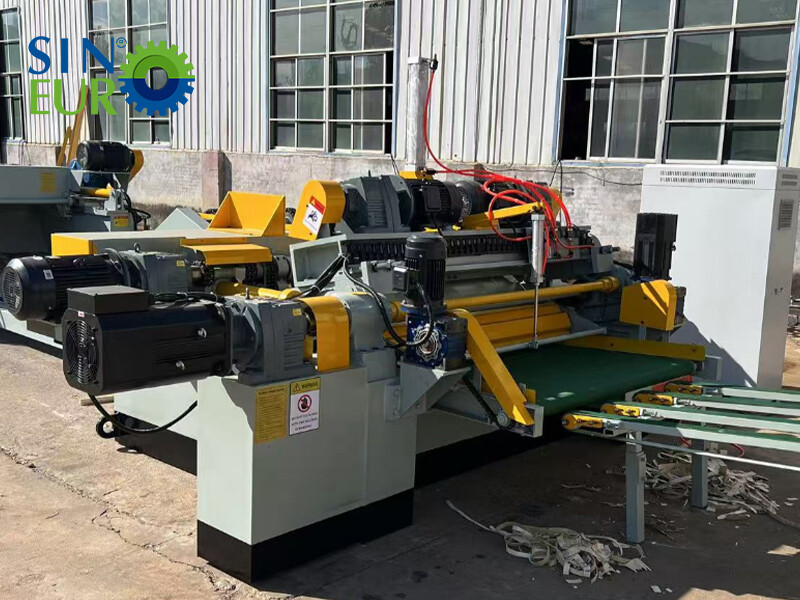

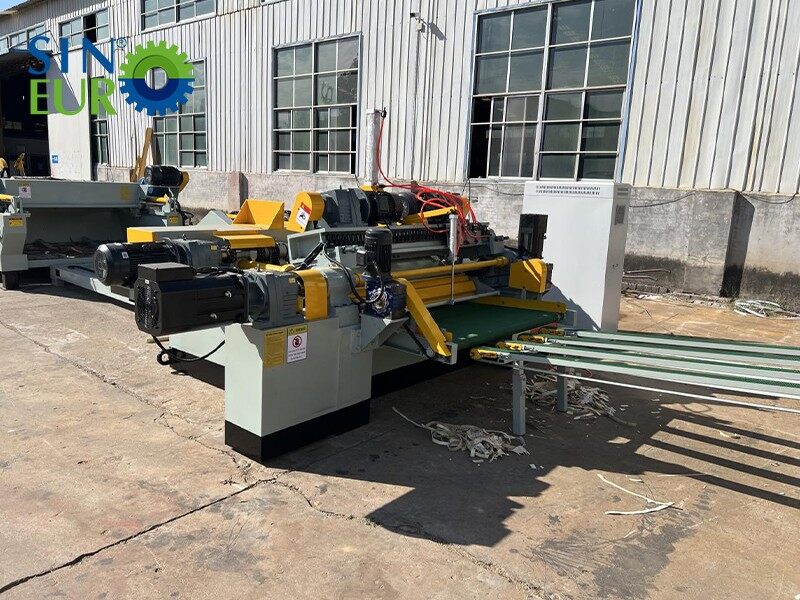

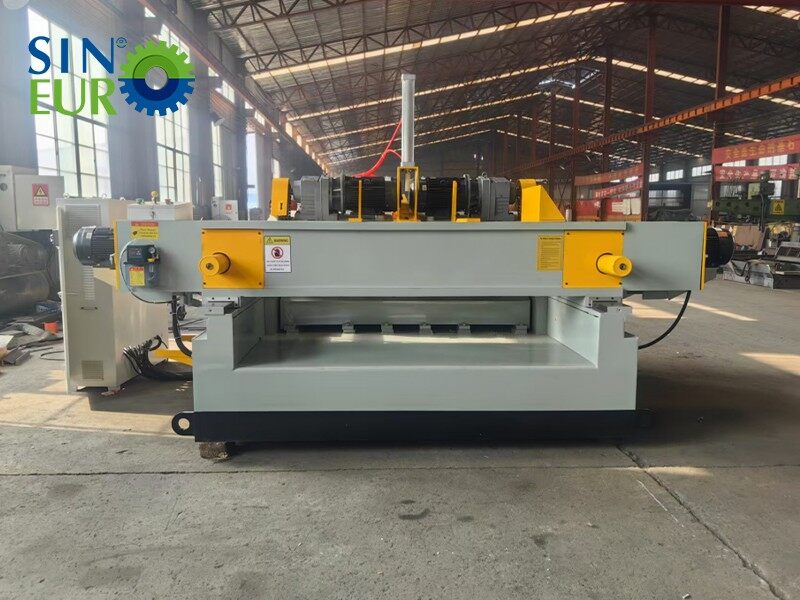

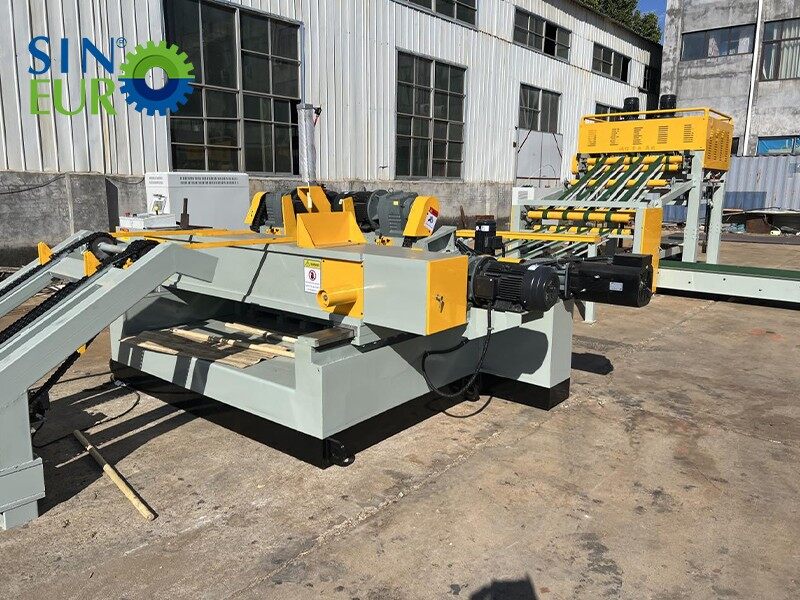

Veneer peeling machine includes half round peeling machine and normal peeling machine
Veneer peeling machine slices solid wood with straight grain or mountain grain, runs stably and precisely, veneer thickness is uniform. It is mainly used in solid wood, plywood, MDF, flooring and furniture production.
Product Parameter(specification)
|
Model |
YMX-4C |
|
Roller length |
1500mm |
|
Max. peeling log diameter |
500mm |
|
Left core diameter |
32mm |
|
Size of blade |
2000*180*16mm TCT blade |
|
Thickness of veneer peeler |
0.5-4mm |
|
Peeling speed |
40-80m/min |
|
Diameter of single roller |
125mm |
|
Diameter of double roller |
125mm |
|
Power of single roller |
7.5KW*2 |
|
Power of double roller |
7.5KW*2 |
|
Power of feeding motor |
11KW (servo motor) |
|
Power of cutting and rubber roller motor |
4KW(servo)+2.2KW |
|
Total power |
47.2KW |
|
Blade holding mode |
Hydraulic holding |
|
Peeling thickness setting |
Automatic servo motor + servo drive control |
|
Main reducer |
R87 |
|
Total weight |
6700kg |
|
Overall dimensions |
5600*2300*1500mm |
Product Feature And Application
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm
Our Services
1.We will send our engineer under your indications to your factory for installing, debugging and maintaining, you only need to afford the cost of the flights, and the engineer's accommodation .
2.If you are experienced in installing jobs, we will provide ongoing technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.
