OSB(oriented strand board) is widely used in construction, packaging,furniture,decoration, etc., and OSB is also well-structured materials and outdoor materials. OSB has a series of features,such as good stability,low material consumption, highstrength,water resistance, and environmental
protection. we can also produce the different sizes of OSB making machines as to our customers' requirements.
Product Introduction
Plywood Core veneer jointing machine, also named as core veneer composer machine, finger jointing machine, is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt glue adhesive connection as one whole body.
PRODUCTION DESPRCTION
OSB PRODUCTION LINE FLOW CHART:
osb production line making machine
|
No |
OSB Board / Particle board capacity for reference |
||
|
1 |
Normal Board size |
Thickness |
Capacity |
|
2 |
4x8feet |
9-25mm |
15000m³-100000m³/year |
|
2 |
6x9feet |
9-25mm |
15000m³-100000m³/year |
|
4 |
5x5feet |
9-25mm |
15000m³-100000m³/year |
|
5 |
5x10feet |
9-25mm |
15000m³-100000m³/year |
|
6 |
Customization |
9-25mm |
Customization |
Machinery List and Display
Complete OSB board production line can be used in furniture-making, flooring-making, packing industry, sound box,construction and decoration of vehicle or vessel etc.
we can accept OEM service,we can change the working length and diameter as your requirement, also can change the motor type (DC orAC). we have rich technology experience and can design machine according to your requirement
Our Project We built for our customer / The scene photographed
Full Automatic Osb Production Line
OSB line based on wood as raw materials, shavings, glue, auxiliary equipment, hot press ed density 550-750kg / M 3 man-made sheet. It has a fine smooth surface structure of th e core layer gradient, and has good heat insulation, sound insulation and good machining properties, is widely used in manufacturing furniture, high-end cabinets, speakers, and ot her interior construction and transport. We produce an annual output of 30000-60000 cub ic meters of particle board equipment, in a dry, auxiliary equipment, hot press has done a great section in the technical modifications, reduce investment, improve the quality of the products.
1) Chip preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are trans ported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes,then the flake stored in wet flake bin.
2) Drying and sifting section
The flskes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified c ore flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, a nd transported to surface flake bin.
3) Forming and hot-pressing section
The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After process of metal remover , pre-press, lengthwise saw, cross s aw, accelerate conveyor,scaling conveyor , storing conveyor and loading conveyor,mats are transported to carrier and then to hot pressing. Rough boards after pressing are push ed to unloader via pallet.
4) Cooling and sizing section
The rough board is conveyed to star-cooler for cooling ,then the rough board goes throug h side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.
5) Sanding section:
The board are sanded,checked and stored.
PLC control is used in mat-forming section.
We can design different capacity according to your requirements. Welcome your kind inquiry to us at Sinoeuro Machinery.

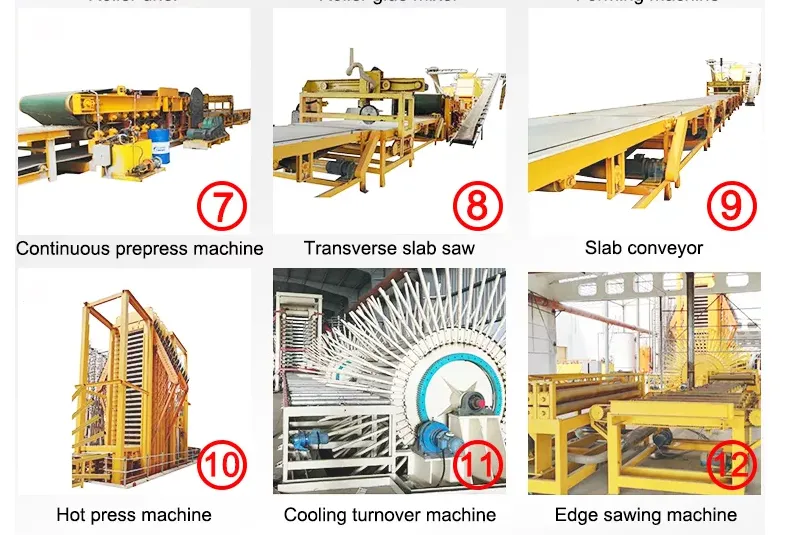

OSB Machinery List & Display
Our Factory Overview
Welcome your kind inquiry to us!
