Ditch Manual Sharpening! LMD-MK CNC Automatic Cutter Grinder Boosts Output of Wood Panel & Printing Factories by Over 40%
一, Product Overview

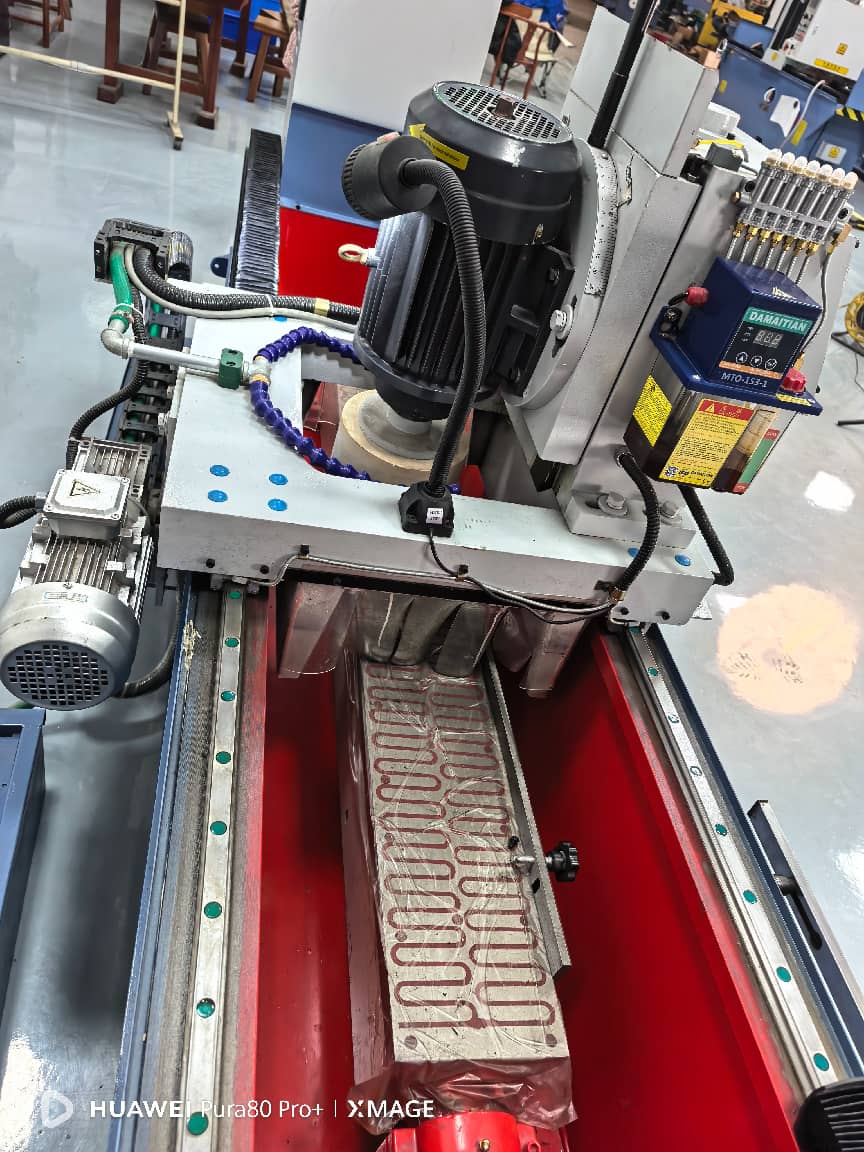

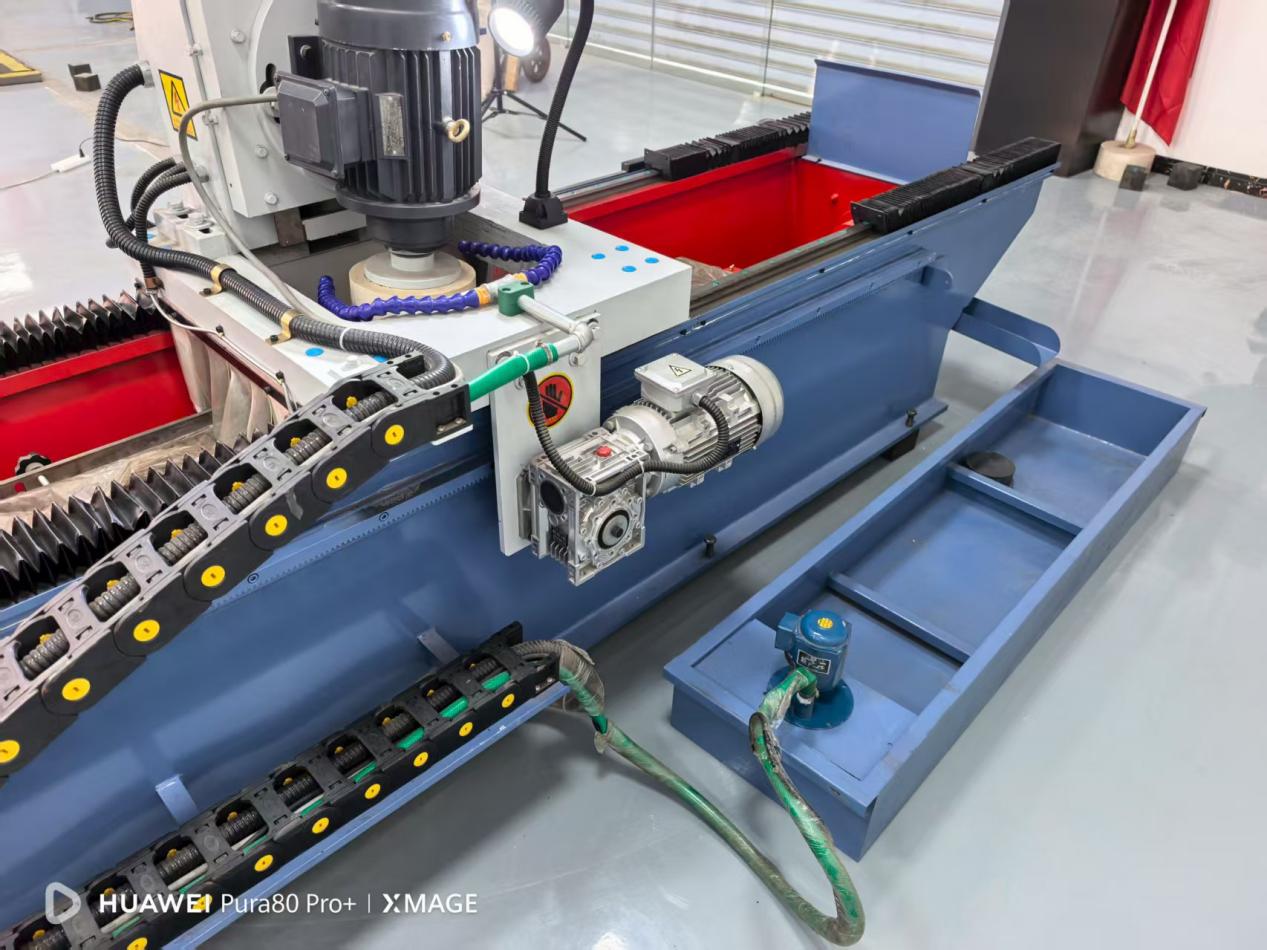

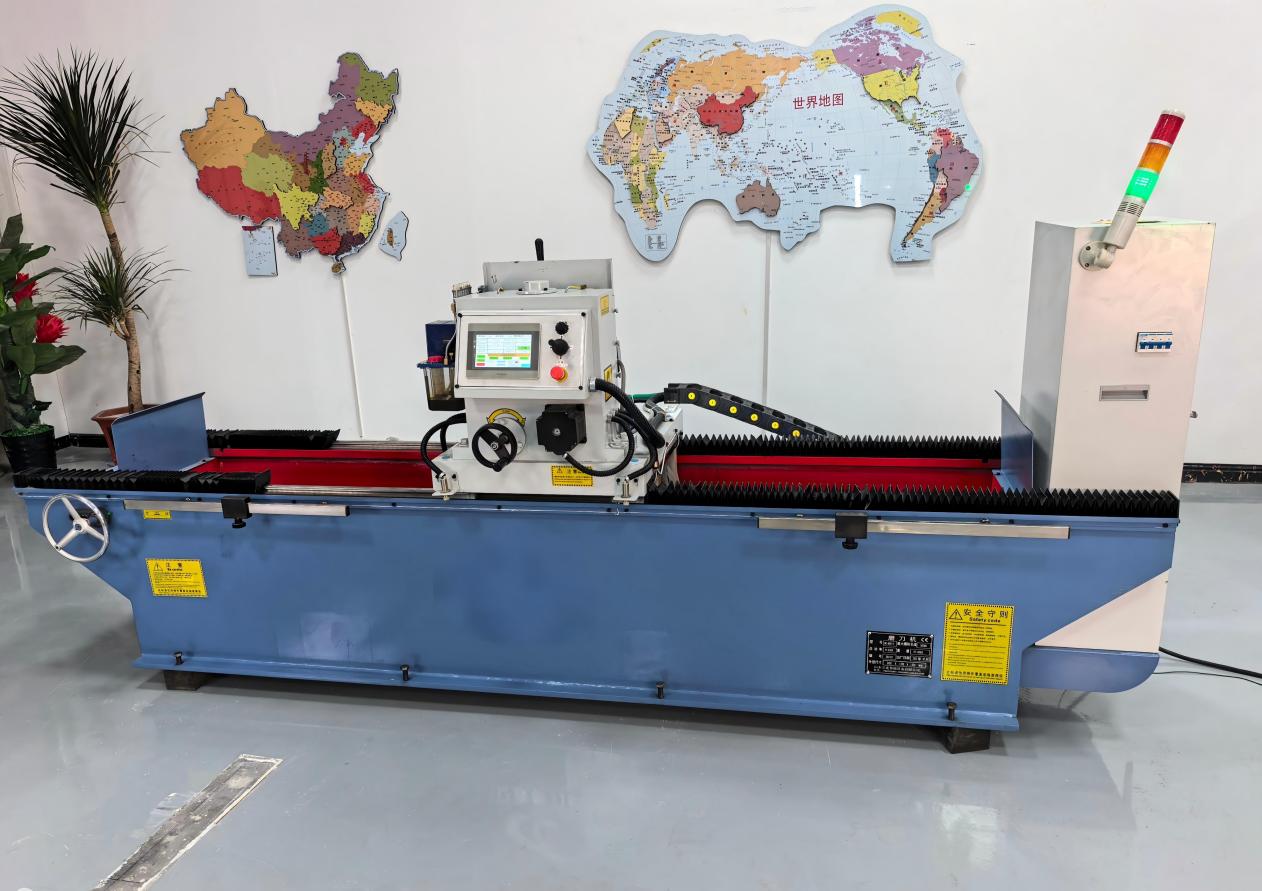

The LMD-MK6115 CNC precision grinding machine is an independently developed and manufactured fully automatic CNC tool sharpening equipment. Equipped with precision linear guide rails, variable frequency speed regulation system and intelligent CNC control system, it supports high-precision, automatic and unattended grinding of straight-edge tools. The reground tools feature high straightness, sharp cutting edges and longer service life. It is widely suitable for small and medium-sized rotary cutting factories, wood panel factories, paper printing and cutting factories, serving as an ideal replacement for traditional manual grinding to reduce costs and improve efficiency.
二,Technical Parameters
The MK6115 grinder features stable performance, high precision and sufficient power, perfectly adapting to high-frequency industrial tool grinding work with standardized and highly practical parameters.
|
Parameters |
Specification |
|
Max Grinding Length |
1600mm |
|
Workbench Size (Electromagnetic Chuck) |
1550*180mm |
|
Grinding Wheel Size |
200*100*32mm (Customizable) |
|
Grinding Precision |
≤0.05mm/m |
|
Working Voltage |
380V 50HZ |
|
Grinding Head Travel Speed |
0-20mm/s (Stepless Adjustable) |
|
Grinding Head Angle Adjustment |
±5° |
|
Workbench Angle Adjustment |
±90° |
|
Driving Method |
Rack & Pinion + VFD Speed Control |
|
Grinding Head Power |
3.0KW, 1440r/min |
|
Lifting Motor Power |
0.37KW, 1440r/min |
|
Traveling Motor Power |
0.75KW, 1440r/min |
|
Water Pump Power |
0.125KW |
|
Total Power |
Approx. 4.5KW |
|
Total Weight |
Approx. 1400KG |
|
Overall Dimension |
3400*1300*1300mm |
三, Core Advantages
1. High Precision Linear Guide Design

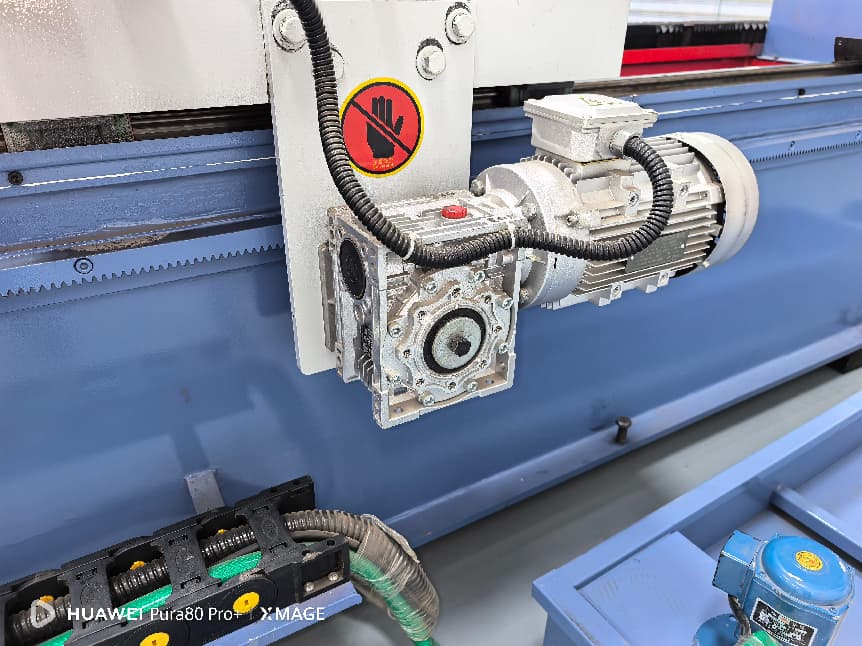

2. Stable VFD Rack & Pinion Drive
3. High-Strength Electromagnetic Chuck
4. Fully Automatic CNC Unattended Grinding
5. Dual Manual & CNC Control Mode
四, Standard Equipment Configuration
The MK6115 CNC grinding machine is equipped with high-quality and durable standard accessories:
Precision linear guide rails
Accordion telescopic protective cover
Special precision grinding motor
Manual & automatic dual lifting mode
Standard grinding wheel BX200 (customizable)
Precision rolling lead screw
CNC centralized automatic lubrication system
External water circulation cooling system
Complete accessories: operation manual, inverter manual, tool kit
五, Application Industries
：Specially designed for straight-edge tool grinding with high cost performance and stable performance, it is most suitable for small and medium-sized factories, including wood rotary cutting plants, wood panel processing factories, paper printing factories and paper cutting enterprises.
六, Conclusion
The LMD-MK6115 CNC precision grinding machine integrates high precision, high automation, superior stability and low maintenance cost. It solves the common industry pain points of low accuracy, low efficiency, high labor cost and high tool loss caused by manual grinding. The full-process unattended CNC grinding ensures stable blade precision, avoids tool waste, and greatly improves production efficiency, making it the best choice for small and medium-sized enterprises for tool renewal and cost reduction.
